A Ralston, NE, client reached out to Titan Garage Doors NE with a concerning issue: their garage door was moving sideways instead of straight up and down. This issue was caused by a damaged part in the door mechanism known as the garage door bearing plate. This component, essential for the smooth operation of the garage, had unfortunately failed, leading to operational difficulties. If left unsolved, it can be a real hassle, not to mention a safety risk. Our team was quick to respond, with our technician arriving on time to address the garage door repair.

Scope of the Garage Door Repair


The first thing our technician did was a thorough inspection of the garage door, especially focusing on the mechanisms that guide its movement. We needed to understand why the door was not maintaining its upright path.

Identifying the Problem

It turned out that the root of the problem was a worn end bearing plate. This component is crucial for keeping the garage door aligned as it moves. Once damaged, the door can start to shift to the side.

Replacing the Bearing Plate

After figuring out what was wrong, we replaced the old, worn-out bearing plate with a new one. With precision, we made sure the new plate would hold the door's weight right and move it in the right direction.

Alignment and Calibration

The next step after installing the new bearing plate was to align and calibrate the garage door. Doing this will make sure the door goes straight up and down with no shifting to the side.

Testing and Final Adjustments

Our technician then tested the door several times to see if it was operating smoothly and staying on the right track. Minor adjustments were necessary to ensure perfect alignment and motion.

Client Education

We told the client what was going on with the repair and answered all of their questions. Our team was there to help and reassure the client, making sure they were confident with how we handled things.

Client Feedback

Everything worked out great for the client. They were glad to see that their garage door was moving properly and not leaning to the side. They appreciated our prompt response, clear explanation, and quick fix.

At Titan Garage Doors NE, we pride ourselves on solving complex issues like this one. Our goal is to ensure that every client feels heard, understood, and satisfied with our service. This project showed how much we care about quality, safety, and making sure our clients are happy.

The Types of Garage Door Bearing Plates and Their Functions

Garage door bearing plates are key components for securing the spring and shaft of a garage door. They might seem small, but they play a big role in the movement of your garage door. These bearing plates come in two types: supported and unsupported.

Supported end bearing plates attach to both the horizontal track angle and the garage door header, providing stronger support. Meanwhile, unsupported end bearing plates, which are generally weaker, only attach to the horizontal track angle. Springs, mounted at the back of the garage, require these bearing plates. Here are other types of garage door bearing plates and what they do:

Standard Center Bearing Plate

These are located in the middle of the garage door system, right above the door. This plate holds the center of the spring system in place. It helps the spring to rotate freely when the door opens and closes, making sure everything moves smoothly.

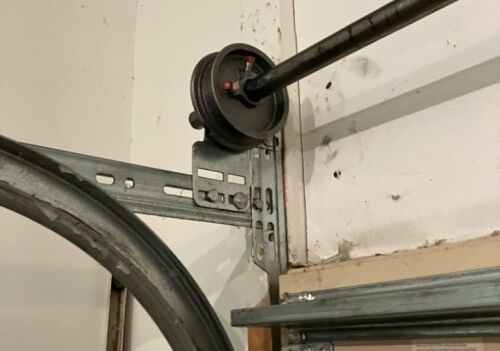

End Bearing Plate

You will find these on either side of the garage door, at the very ends of the horizontal tracks. These plates support the ends of the torsion springs and the shaft. They help the shaft turn freely when you operate the door.

Adjustable Center Bearing Plate

Like the standard center bearing plate, this one is also located above the door, at the center of the spring system. The big difference here is that this plate is adjustable.

Steel Bearing Plate

Made of steel, these include the center or end bearing plates, known for their durability and strength. They are a great choice if you use your garage door frequently.

Sealed Bearing Plate

You can find these plates in the center or end positions. They do not need regular lubrication, which means less maintenance for you.

Each bearing plate type is crucial to garage door operation. These small parts make your garage door work better by supporting the spring system, making sure the door turns smoothly, and reducing the need for upkeep.

Is your garage door not opening and closing as smoothly as it used to? It might be time to check your garage door bearing plate! At Titan Garage Doors NE, we offer expert garage door repair services, ensuring your door works like new. Homeowners in Ralston, NE, and surrounding areas, do not let a faulty bearing plate disrupt your day. Trust our skilled team to provide quick, efficient, and reliable repairs. Contact us today and say goodbye to garage door troubles!
